Company Advantages
1. Different high technologies are applied in the development of Xavier rotary broaching tool . It is developed and upgraded under technologies such as mechanical systems technology, automatic control technology, sensing technology, and servo-drive technology.
2. The product stands out for its low energy consumption. By adopting energy-saving technology, its ingenious circuit design can effectively minimize the loss of energy due to transient currents.
3. With the above excellent characteristics, the product has good competitiveness and good development prospects.
4. The product has high commercial value to meet the demanding requirements of customers around the world.

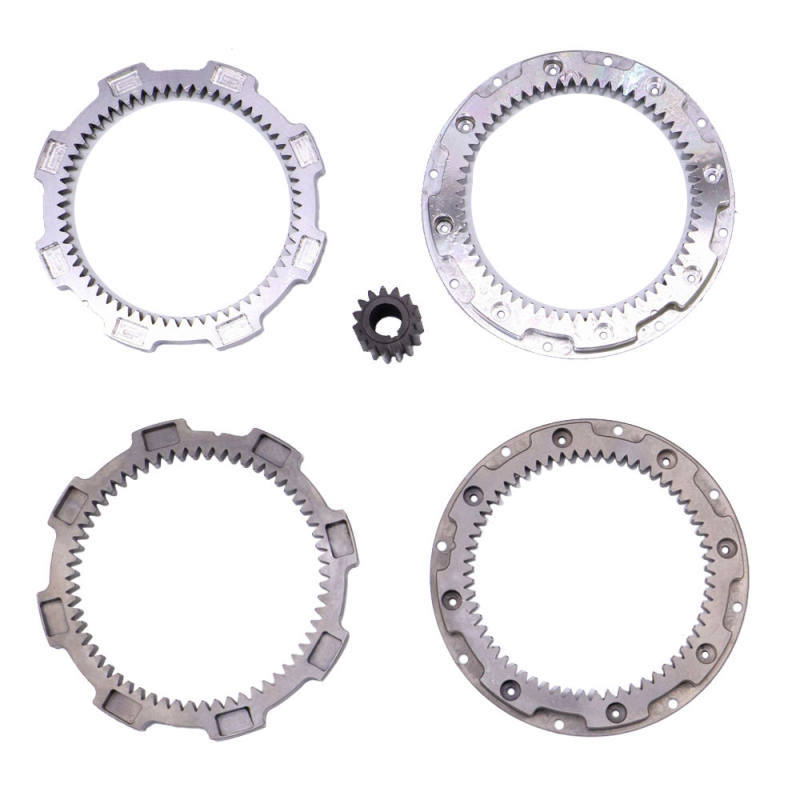

Similar gears:

Feature:

Material: C45

Heat treatment: Nitriding

Processing: CNC Turning, Gear broaching and CNC Milling

Hardness: 45-50HRC

Accuracy: 0.005-0.2mm



Decription

For these gears, they were made of steel C45 and nitriding.  At first, we got the C45 bar from the supplier.

They help us to cutted the bar as piece by piece. Then we send the pieces to do heating to prevent deformation.

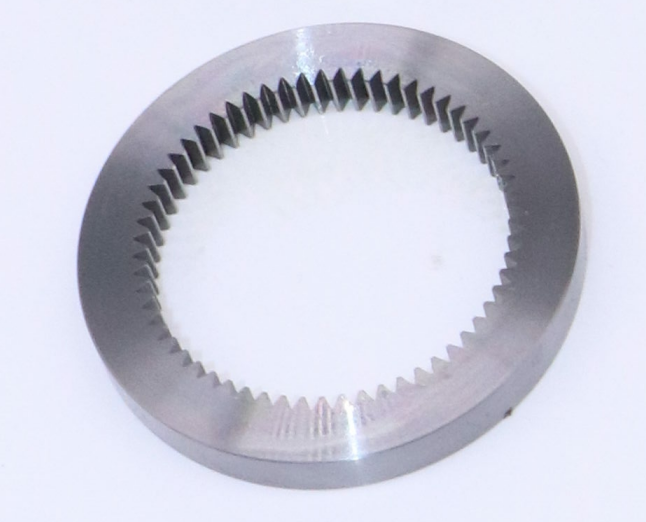

Next, they should be machined by CNC turning as a steel ring, no teeth. And gear broaching as the next step for them as following:

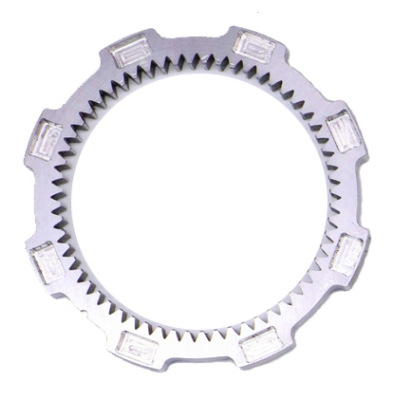

At last, they should be machined by CNC milling for the location holes.

When we finished all above steps, the gears should be sent to do nitriding, to be harder and more antiwear.

Application:

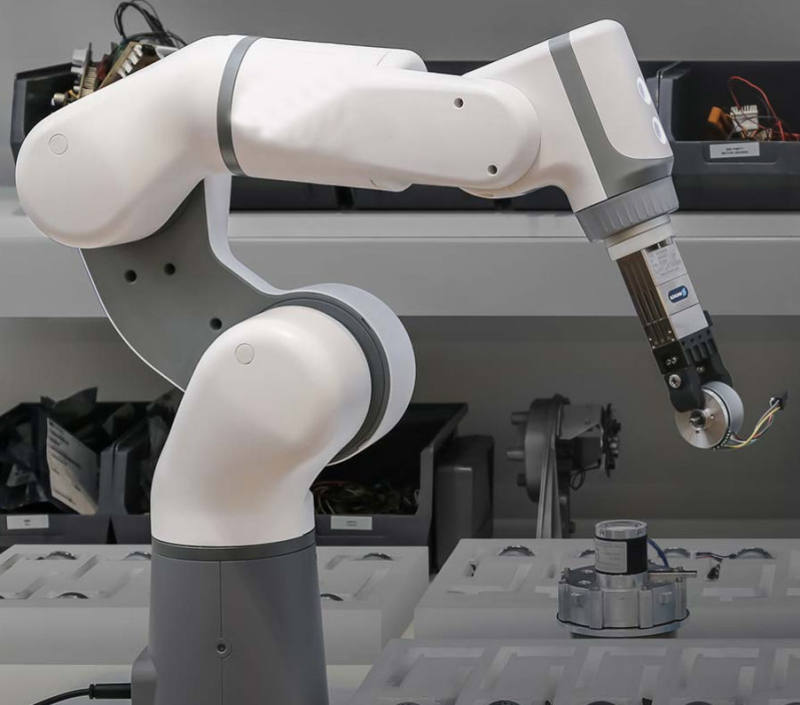

The ring gears will be used for the Mechanical Arm:



Company Features
1. Shenzhen Xavier Precision Components Co., Ltd. has create new figures for cnc machining gears in the field.
2. Our company consists of a group of professionals. They are all well-trained and qualified. This ensures that we can provide our customers with the best outcomes.
3. Centering on broaching gears is our long-term development strategy. Please contact us! During the developing process of Xavier, we will be earnest to undertake the responsibility as a leader in robot gears industry. Please contact us! Shenzhen Xavier Precision Components Co., Ltd. will work hard to enhance customer confidence and expand market share. Please contact us! The goal of Xavier is to shoulder the responsibility of cnc machining gears . Please contact us!
